Halo H47BE

New Comers

BE9300 Whole Home Mesh Wi-Fi 7 System

  • Blazing-Fast 9214 Mbps Tri-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
  • Newest WiFi 7: Armed with the 320 MHz channels, 4K-QAM, MLO,  the 6 GHz band, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
  • Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.
  • Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
  • 3× 2.5G Ports: 3× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
  • Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 6,000 ft2/550 m2 (2-pack).
  • Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

*Please note that the Halo H series and S series cannot work together.


  • Halo Mesh WiFi 7 System - Elevate Your Connectivity, Transform Your World

Build an Amazing Mesh Network and Bring it to a New World

BE9300 Whole Home Mesh WiFi 7 System

Halo H47BE wifi7
a-icons
Tri-Band WiFi 7 Speeds up to 9.3 Gbps
Connect over 200 Devices
Easy App Control
Whole Home Multi – Gigabit Coverage up to
6,000 ft2/550 m2
Full 2.5 Gbps WAN/LAN Ports
320 MHz Channels
New 6GHz Band
4K-QAM for More Data
Multi-Link Operation

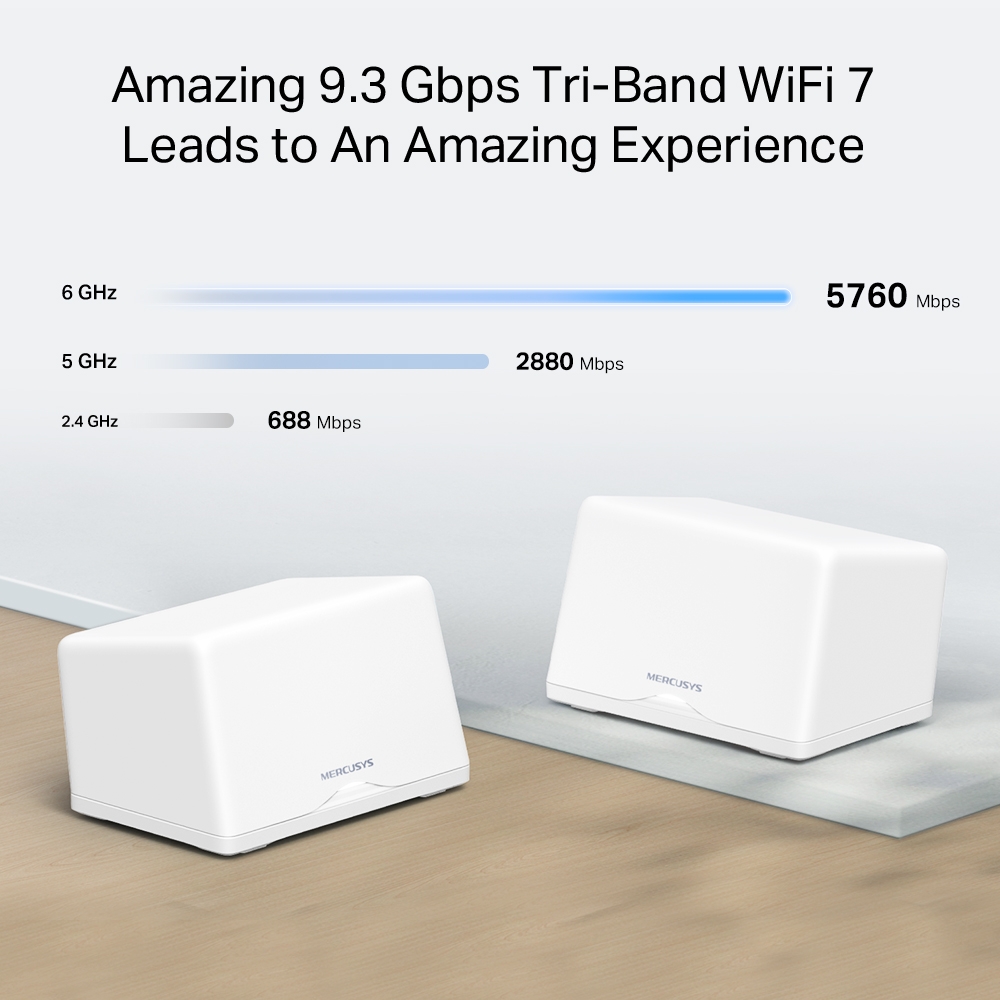

Amazing 9.3 Gbps Tri-Band WiFi 7 Leads to An Amazing Experience

WiFi 7 updates the QAM from 1024 to 4096, uses the wider 320 MHz channels and the new 6 GHz band to make Halo H47BE reach a 9214 Mbps speed. You can enjoy the smooth network with this fast speed and specially clean band.

6 GHz bar3 5760 Mbps
5 GHz bar2 2880 Mbps
2.4 GHz bar1 574 Mbps

WiFi 7 Brings Your Network to a Next Level

WiFi 7, the latest WiFi standard, has arrived with jaw-dropping performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.

  •

    New 6 GHz Band for Faster Speeds

  •

    Double the Channel Width and Speeds

  •

    Packs 20% more
    data than WiFi 6

  •

    4× Lower
    Latency

  •

    More Connection Over 200 Devices

  •

    Multi-Link
    Operation

Build A Multi-Gigabit Mesh Network to Fully Cover Your Home

Halo mesh units work as a unified network with a single network name and password to eliminate weak signal areas. It can choose the best signal and enjoy the best connections. Halo H47BE matches 2.5G ISP network access with 3× 2.5 Gbps WAN/LAN autosensing ports. The other port can be utilized as a LAN port connection for devices or as a wired backhaul between Halo H units. In this approach, it offers the best 2.5 Gbps connectivity for a real 2.5G era, whether it is wired or wireless.**

2 Pack Covers up to

6000ft2 / 550m2

True Seamless Roaming with One Unified Network

The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging WiFi when you’re walking around the house.

Full 2.5 Gbps Ports for a Higher Network Performance

Equipped with 3× 2.5 Gbps WAN/LAN auto-sensing ports. Halo H47BE allows you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.**

  • ① Multi-Gig Internet Access

    f-icon-1
  • ② 2.5 Gbps Wired Connection

    f-icon-2
    Desktop 4K HDTV Computer

Easy Setup and Management via the MERCUSYS App

Follow the on-screen directions to set up your network.

  • Step 1

    Find what you’ll need in the box

    Step 1:Find the Halo,Power Cable and Ethernet Cable in the box Halo Power Cable Ethernet Cable
  • Step 2

    Plug in your devices

    Step 2:Plug in your devices
  • Step 3

    Follow the on-screen directions with the app to configure the main Halo

    Step 3:Follow the on-screen directions with the MERCUSYS app
  • Step 4

    Power up the included add-on unit and it will automatically join the network

    Step 3:Follow the on-screen directions with the MERCUSYS app
  •

    Parental Controls

  •

    Check the Status of Connected Devices

  •

    Quality of Service

  •

    Guest Network

  •

    New Device
    Access Alert

  •

    Monthly Reports

Easily Extend Your Coverage

The Halo Whole Home WiFi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.*

*Please note that the Halo H series and S series cannot work together.

Powerful and Beautiful






†Seamless roaming requires clients to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
‡Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Over 200 device connections is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other loT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. This Halo may not support all the mandatory features as ratified in the IEEE 802.11belax specification. Further software upgrades for feature availability may be required.
§Use of WPA3 requires clients to also support the corresponding feature.
*Please note that the Halo H series and S series cannot work together. Halo H47BE is compatible with other units from the Halo H series to form a Mesh network.
**2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions. WAN port at a time.

Drahtlos
Wireless Standards


6 GHz: IEEE 802.11be

5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed

2.4 GHz: IEEE 802.11b/g/n/ax mixed

WiFi Speeds

5760 Mbps at 6 GHz

2880 Mbps at 5 GHz

574 Mbps at 2.4 GHz

Reception Sensitivity

2.4G: -96dBm

5G: -95dBm

6G: -96dBm

Transmission Power

5G band1 band2<23dBm

5G band3<30dBm

6G<23dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh Protokoll

802.11k/v/r

Hardware
Dimensionen

6.69 × 4.82 × 4.07 in (170 × 122.4 × 103.5 mm))

Interfaces

3× 2.5 Gbps Ports (WAN/LAN auto-sensing)

Button

Reset button

Software
Betriebsmodi

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

6 GHz Guest Network

Sonstiges
Package Contents

2-pack

2× Halo H47BE Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
